sirf::ISMRMRDImageData Class Referenceabstract

Abstract Gadgetron image data container class. More...

#include "gadgetron_data_containers.h"

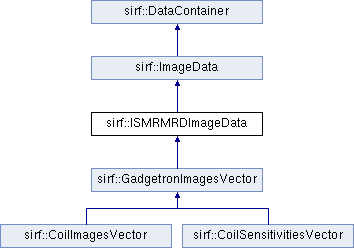

Inheritance diagram for sirf::ISMRMRDImageData:
sirf::ImageData sirf::DataContainer sirf::GadgetronImagesVector sirf::CoilImagesVector sirf::CoilSensitivitiesVector

Public Member Functions

virtual void empty ()=0

virtual unsigned int number () const =0

virtual gadgetron::shared_ptr< ImageWrap > sptr_image_wrap (unsigned int im_num)=0

virtual gadgetron::shared_ptr< const ImageWrap > sptr_image_wrap (unsigned int im_num) const =0

virtual void append (int image_data_type, void *ptr_image)=0

virtual void append (const ImageWrap &iw)=0

virtual void append (gadgetron::shared_ptr< ImageWrap > sptr_iw)=0

virtual gadgetron::shared_ptr< ISMRMRDImageData > abs () const =0

virtual gadgetron::shared_ptr< ISMRMRDImageData > real () const =0

virtual void clear_data ()=0

virtual void set_image_type (int imtype)=0

virtual void get_data (complex_float_t *data) const

virtual void set_data (const complex_float_t *data)

virtual void get_real_data (float *data) const

virtual void set_real_data (const float *data)

virtual int read (std::string filename, std::string variable="", int iv=-1)

virtual void write (const std::string &filename, const std::string &groupname, const bool dicom) const

virtual void write (const std::string &filename) const

virtual Dimensions dimensions () const

virtual void get_image_dimensions (unsigned int im_num, int *dim) const

bool check_dimension_consistency () const

virtual gadgetron::shared_ptr< ISMRMRDImageData > new_images_container () const =0

virtual gadgetron::shared_ptr< ISMRMRDImageData > clone (const char *attr, const char *target)=0

virtual int image_data_type (unsigned int im_num) const

virtual size_t num_data_elm () const

virtual float norm () const
 returns the norm of this container viewed as a vector

virtual void sum (void *ptr) const
 below all void* are actually complex_float_t*

virtual void max (void *ptr) const
 calculates the value of this container's element with the largest real part

virtual void dot (const DataContainer &dc, void *ptr) const
 calculates the dot product of this container with another one More...

virtual void axpby (const void *ptr_a, const DataContainer &a_x, const void *ptr_b, const DataContainer &a_y)
 *this = the linear combination of x and y

virtual void xapyb (const DataContainer &a_x, const void *ptr_a, const DataContainer &a_y, const void *ptr_b)
 alternative interface to the above

virtual void xapyb (const DataContainer &a_x, const void *ptr_a, const DataContainer &a_y, const DataContainer &a_b)
 *this = elementwise sum of x*a and elementwise y*b

virtual void xapyb (const DataContainer &a_x, const DataContainer &a_a, const DataContainer &a_y, const DataContainer &a_b)
 *this = elementwise sum of two elementwise products x*a and y*b

virtual void multiply (const DataContainer &x, const DataContainer &y)
 *this = the elementwise product x*y

virtual void divide (const DataContainer &x, const DataContainer &y)
 *this = the elementwise ratio x / y

virtual void maximum (const DataContainer &x, const DataContainer &y)
 *this = the elementwise max(x, y)

virtual void minimum (const DataContainer &x, const DataContainer &y)
 *this = the elementwise min(x, y)

virtual void power (const DataContainer &x, const DataContainer &y)
 *this = the elementwise pow(x, y)

virtual void multiply (const DataContainer &x, const void *ptr_y)
 *this = the product x * y with scalar y

virtual void add (const DataContainer &x, const void *ptr_y)
 *this = the sum x + y with scalar y

virtual void maximum (const DataContainer &x, const void *ptr_y)

virtual void minimum (const DataContainer &x, const void *ptr_y)

virtual void power (const DataContainer &x, const void *ptr_y)

virtual void exp (const DataContainer &x)
 *this = the elementwise exp(x)

virtual void log (const DataContainer &x)
 *this = the elementwise log(x)

virtual void sqrt (const DataContainer &x)
 *this = the elementwise sqrt(x)

virtual void sign (const DataContainer &x)
 *this = the elementwise sign(x)

virtual void abs (const DataContainer &x)
 *this = the elementwise abs(x)

void binary_op (const DataContainer &a_x, const DataContainer &a_y, complex_float_t(*f)(complex_float_t, complex_float_t))

void semibinary_op (const DataContainer &a_x, complex_float_t y, complex_float_t(*f)(complex_float_t, complex_float_t))

void unary_op (const DataContainer &a_x, complex_float_t(*f)(complex_float_t))

void fill (float s)

void scale (float s)

complex_float_t dot (const DataContainer &a_x)

void axpby (complex_float_t a, const DataContainer &a_x, complex_float_t b, const DataContainer &a_y)

void xapyb (const DataContainer &a_x, complex_float_t a, const DataContainer &a_y, complex_float_t b)

gadgetron::unique_ptr< ISMRMRDImageData > clone () const

virtual void sort ()=0

bool sorted () const

void set_sorted (bool sorted)

std::vector< int > index ()

const std::vector< int > & index () const

int index (int i) const

ImageWrap & image_wrap (unsigned int im_num)

const ImageWrap & image_wrap (unsigned int im_num) const

void set_meta_data (const AcquisitionsInfo &acqs_info)
 Set the meta data.

const AcquisitionsInfo & get_meta_data () const
 Get the meta data.

- Public Member Functions inherited from sirf::ImageData
virtual Iterator & begin ()=0

virtual Iterator_const & begin () const =0

virtual Iterator & end ()=0

virtual Iterator_const & end () const =0

virtual bool ordered () const

void copy (Iterator_const &src, Iterator &dst, Iterator &end) const

void fill (const ImageData &im)

void fill (float v)

virtual bool operator== (const ImageData &id) const
 Write image to file.

virtual bool operator!= (const ImageData &id) const

std::shared_ptr< const VoxelisedGeometricalInfo3D > get_geom_info_sptr () const
 Get geometrical info.

std::unique_ptr< ImageData > clone () const
 Clone and return as unique pointer.

virtual bool is_complex () const
 Is complex? Unless overwridden (Gadgetron), assume not complex.

virtual void reorient (const VoxelisedGeometricalInfo3D &)
 Reorient image. Requires that dimesions and spacing match.

virtual void set_up_geom_info ()=0
 Populate the geometrical info metadata (from the image's own metadata)

- Public Member Functions inherited from sirf::DataContainer
virtual ObjectHandle< DataContainer > * new_data_container_handle () const =0

virtual unsigned int items () const =0

virtual int bits () const
 returns the size of data elements

void xapyb (const DataContainer &a_x, const DataContainer &a_a, const DataContainer &a_y, const void *ptr_b)
 *this = elementwise sum of elementwise x*a and y*b

bool is_empty () const

std::unique_ptr< DataContainer > clone () const

void conjugate ()
 overwrites this container's complex data with complex conjugate values

std::unique_ptr< DataContainer > conjugate () const
 returns unique pointer to the complex-conjugated copy of this container


Protected Member Functions

virtual ISMRMRDImageData * clone_impl () const =0
 Clone helper function. Don't use.

virtual void conjugate_impl ()
 we assume data to be real, complex data containers must override this

- Protected Member Functions inherited from sirf::ImageData
void set_geom_info (const std::shared_ptr< VoxelisedGeometricalInfo3D > geom_info_sptr)
 Set geom info.


Protected Attributes

bool sorted_ =false

std::vector< int > index_

AcquisitionsInfo acqs_info_


Additional Inherited Members

- Static Public Member Functions inherited from sirf::ImageData
static bool can_reorient (const VoxelisedGeometricalInfo3D &geom_1, const VoxelisedGeometricalInfo3D &geom_2, const bool throw_error)
 Can reorient? (check dimensions and spacing)

- Static Public Member Functions inherited from sirf::DataContainer
template<typename T >
static T product (T x, T y)

template<typename T >
static T ratio (T x, T y)

template<typename T >
static T inverse_ratio (T x, T y)

template<typename T >
static T sum (T x, T y)

template<typename T >
static T maximum (T x, T y)

template<typename T >
static T maxabs (T x, T y)

template<typename T >
static T maxreal (T x, T y)

template<typename T >
static T minimum (T x, T y)

template<typename T >
static T minabs (T x, T y)

template<typename T >
static T minreal (T x, T y)

static std::complex< float > power (std::complex< float > x, std::complex< float > y)

static std::complex< float > exp (std::complex< float > x)

static std::complex< float > log (std::complex< float > x)

static std::complex< float > sqrt (std::complex< float > x)

template<typename T >
static T sign (T x)

template<typename T >
static T abs (T x)


Detailed Description

Abstract Gadgetron image data container class.

Member Function Documentation

◆ dot()

void GadgetronImageData::dot ( const DataContainer &  dc,
void *  ptr
) const
virtual

calculates the dot product of this container with another one

below all void* are actually either float* (STIR containers and NiftiImageData) or complex_float_t* (Gadgetron containers)

Implements sirf::DataContainer.

The documentation for this class was generated from the following files:
